奥菲利亚系统 150 恒温淋浴系统
Enjoy care-free showering luxury with the GROHE Euphoria 150 shower system with thermostatic mixer
Fluid lines ideal for the fresh modern bathroom, features designed to add to your comfort and enjoyment - the GROHE Euphoria 150 shower system with thermostatic mixer creates a delightful shower experience. Its GROHE TurboStat technology gives you precise control and maintains a constant water temperature. A great safety feature for families, GROHE SafeStop limits water temperature to 38˚, while SafeStop Plus offers an additional, overridable limit of 43˚. Consisting of a 150mm Euphoria Cube head shower, mounted on a 450mm Comfort Zone swivel arm, and a height-adjustable Euphoria Cube stick hand shower with a 1750mm Silverflex twist-free hose, the shower system has everything you need. It’s easy to switch between head and hand shower using the AquaDimmer feature. The head shower’s Rain Spray pattern offers a truly relaxing showering experience. GROHE DreamSpray technology in both showers guarantees an even flow from every nozzle. The hand shower also has a GROHE EcoJoy 9.5l/min flow limiter, a water-saving feature that is economical too, while offering the same great performance. Cleaning is easy thanks to SpeedClean nozzles that brush free of limescale with your finger. Long-lasting and sparkling, the GROHE StarLight chrome finish enhances the whole shower system. A super-insulated Inner WaterGuide keeps the surface from getting too hot, stopping the risk of scalding as well as extending the life of the chrome finish. This exposed-thermostat shower is designed to be wall-mounted. You may like to add a GROHE EasyReach tray (26362) for holding shampoo and soap within comfortable reach, sold separately.
- 包含:
- 花洒臂450毫米,可水平转动
- 明装恒温器带分水功能
- 可选:
- 奥菲莉亚方 150头顶花洒 (27 705 000)
- 喷洒模式:雨淋式
- 最大流量(在3巴压力下):8升/分钟
- 带球形接头
- 旋转角度 ± 12°
- 奥菲莉亚方形手持花洒 (27 698)
- maximum flow rate (at 3 bar): 12.5 l/min
- 手持花洒高度可调节
- 银色花洒软管1750毫米(28 388)
- 恒温热敏阀芯,能瞬间达到设定的淋浴温度并保持水温恒定
- 高仪乐可节技术减少耗水量
- 38摄氏度安全锁定钮,以防止儿童误将水温调高而烫伤
高仪安全锁定钮Plus 含43° C附加温度限制器
- 高仪幻洒技术
- 高仪持久镀铬饰面
- 快速清洁技术,防止水垢
- 内部水流导管,使用寿命更长
- 不打结设计,防止软管缠绕打结
- 适用即时热水器
- 最低流量:7升/分钟
- 升级选配件:高仪易可得 置物架 (26 362),单独销售
CAD数据

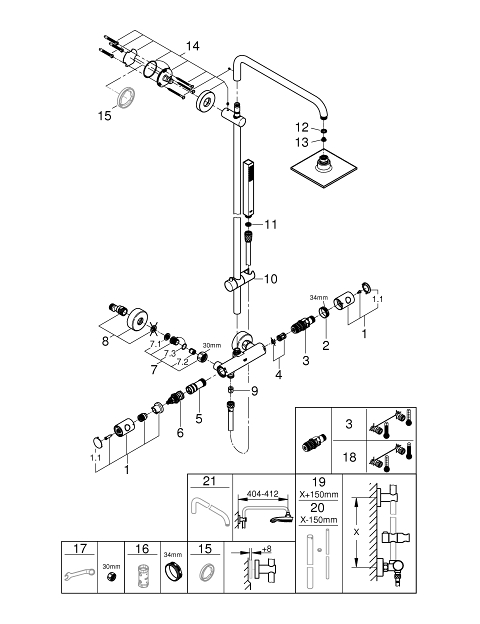

邮编 | 生产描述 | 订货号 |
---|---|---|
*专用配件 | ||
1 | 金属把手 | 47984000 |
1.1 | Cover cap | 6458500M |
2 |
碗盆龙头 |
47743000 |
3 |
恒温阀芯,1/2"US |
47439000 |
4 | 缓冲器 | 47398000 |
5 | 流量限制器 | 47751000 |
6 | 综合开关分水器 | 12433000 |
7 | 防回流阀 | 47189000 |
7.1 | 滤网 | 0726400M |
7.2 | 防回流阀 | 08565000 |
7.3 | O型圈 ø 17 x ø 2 | 0305500M |
8 | S弯 | 12662000 |
9 | 防回流阀 | 08565000 |
10 | 滑块 | 12140000 |
11 | 滤网 | 0700200M |
12 | 连接垫圈 | 0138900M |
13 | 滤网 | 0676800M |
14 | 花洒杆托架 | 48279000 |
15 | 平衡板 | 27180000* |
16 | 套筒扳手 | 19332000* |
17 | Special spanner | 19377000* |
18 | GROHE TurboStat cartridge 1/2" | 47175000* |
19 | 淋浴杆 | 48053000* |
20 | 淋浴杆 | 48054000* |
21 | 花洒臂 | 14047000* |
