The GROHE Solido installation system for your toilet – upgrade to water-saving, low-noise and maximum stability
Product main features
- 6/9升GD2水箱
- 包含：
- Solido Compact element for WC (38 939 000)
- 2个挂墙式托板带固定材料
Technical Product Information
CAD数据

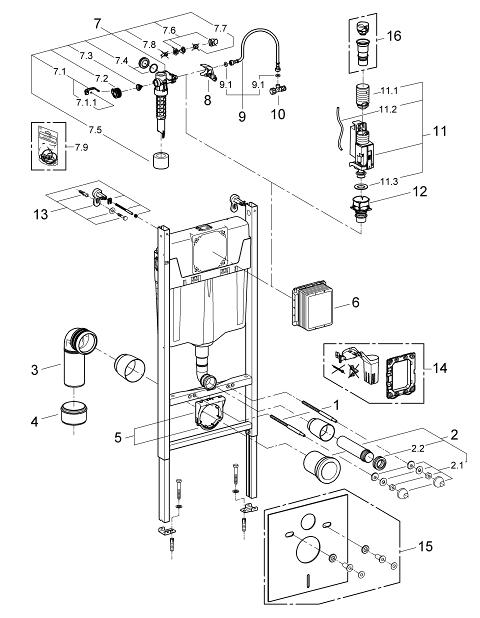

| 邮编 | 生产描述 | 订货号 |
|---|---|---|
| *专用配件 | ||
| 1 | 螺栓 | 4276400M |
| 2 | 连接管 | 37311K00 |
| 2.1 | Basin fastening | 43511SH0 |
| 2.2 | 连接器 | 37119000 |
| 3 | PP-outlet bend Ø 90 mm | 42327000 |
| 4 | Reducer | 42242000 |
| 5 | Support for outlet bend | 42243000 |
| 6 |
检查轴 |
66791000 |
| 7 | 充水阀 | 37095000 |
| 7.1 | 把手 | 43734000 |
| 7.1.1 | 紧固件 | 4377000M |
| 7.2 | Valve head | 43536000 |
| 7.3 | 膜 | 4375800M |
| 7.4 | 螺帽 | 43735000 |
| 7.5 | Valve FLOAT, 5 pcs. | 4379100M |
| 7.6 | 密封配套 | 43722000* |
| 8 | Support device | 42246000 |
| 9 | 软管 | 42233000 |
| 9.1 | Sealing washer | 0319100M |
| 10 | 角阀 | 43821000 |
| 11 | 双重开关阀AV1 | 42320000 |
| 11.1 | extension for Overflow pipe | 42313000 |
| 11.2 | Pneumatic hose | 42319000 |
| 11.3 | 紧固件 | 42310000 |
| 12 | Valve seat | 42316000 |
| 13 | 配件,1.13m | 3855800M |
| 14 | AV1卸流阀 | 38796000* |
| 15 | 防噪配套 | 37131000* |
| 16 | 4.5 l adapter for GD2 | 42333000* |
