产品描述
Easy-fit GROHE Rapid SL installation system – with GROHE Fresh for perfect hygiene
Delivering safety, convenience and strength, as well as a fuss-free installation, this GROHE Rapid SL 6-in-1 installation set for wall-hung toilets makes fitting a new WC as easy as can be. The steel frame is certified to hold loads of over 400 kg for ultimate stability and it can be installed in front of a solid wall or stud wall in next-to-no-time thanks to the GROHE QuickFix system, which requires no tools to connect hose, inspection shaft and water supply. The GROHE EcoJoy dual flush system is kinder to the environment, reducing water consumption by up to 50%. Noise transmission to the building is kept to a minimum thanks to GROHE Whisper technology, engineered with low-noise fittings and separate plumbing. The GROHE Fresh feature lets you to open the flush plate to insert toilet freshener tabs directly into the tank for increased bathroom hygiene. The set comes with wall brackets, an attractive Skate Cosmopolitan chrome flush plate and a toilet brush.
- GD2水箱
- 安装高度为1.13米
- 挂墙用
- 用于干包层,完整预装
- 粉末喷涂处理钢架,自立式
- 附固定连接
- 可锁定式快速调节
- 安装物料
- TÜV认证
- 2个马桶固定螺栓
- 陶瓷件紧固设备
- 陶瓷马桶带小支撑面积(小于205毫米)
需要外加配件38 779 000 - 固定螺栓长度180/230毫米
- 出水弯管 90毫米
- 深度可调
- 减径管 90/110毫米
- 进水出水连接配套
- 6/9升GD2水箱
- 出厂调整水量为6升和3升
- 气动冲水阀:双冲,单冲(中断冲水)及不可中断冲水
- 左/右/后进水
- 低噪音(获德国噪音认证)
- 防冷凝
- 1/2" 供水连接包括综合
角阀和推入配合灵活软管接头 - 安装检查无需使用工具,包含施工过程中使用的防护装置
- 垂直或水平使用
- 墙面安装配件
- 挂墙式马桶刷套件
- 带高仪Fresh改装套件
- 只用于不含氯的调整片
- 含斯科特都市型冲水面板
- 垂直及水平安装
- 156 x 197毫米
- 含斯科特都市型冲水面板
- ABS材质
- 高仪星闪镀铬饰面
- 防噪马桶组合
技术信息
CAD数据

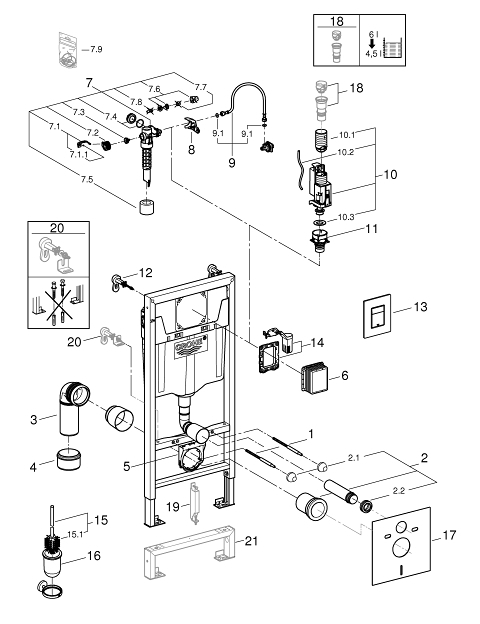

备件

邮编 | 生产描述 | 订货号 |
---|---|---|
*专用配件 | ||
1 | Threaded bolt | 4276400M |
2 | WC inlet and outlet connecting set | 37311K00 |
2.1 | Basin fastening | 43511SH0 |
2.2 | Connector | 37119000 |
3 | PP-outlet bend Ø 90 mm | 42327000 |
4 | Reducer | 42242000 |
5 | Support for outlet bend | 42243000 |
6 | 检查轴 | 66791000 |
7 | Filling valve | 37095000 |
7.1 | Lever | 43734000 |
7.1.1 | Seal | 4377000M |
7.2 | Valve head | 43536000 |
7.3 | Membrane | 4375800M |
7.4 | Screw cap | 43735000 |
7.5 | Valve FLOAT, 5 pcs. | 4379100M |
7.6 | Dummy plug and escutcheon cap | 37125000 |
7.7 | Compression nut | 43258000 |
7.8 | Throttle | 42356000 |
7.9 | Set of seals | 43722000* |
8 | Support device | 42246000 |
9 | Tube | 42233000 |
9.1 | Sealing washer | 0319100M |
10 | Dual Flush discharge valve AV1 | 42320000 |
10.1 | extension for Overflow pipe | 42313000 |
10.2 | Pneumatic hose | 42319000 |
10.3 | Seal | 42310000 |
11 | Valve seat for GD2 | 42315000 |
12 | Wall brackets | 3855800M |
13 | Top plate with push button | 42371000 |
14 | Retro-fit set | 38796000* |
15 | Spare brush | 40392000 |
15.1 | Spare brush head | 40791001 |
16 | Spare glass | 40393000 |
17 | Set for noise protection | 37131000* |
18 | 4.5 l adapter for GD2 | 42333000* |
19 | Accessory | 38779000* |
20 | Rapid SL mounting angle | 38733000* |
21 | Extension | 38629000* |
