产品描述
高仪Rapid SL安装系统,配有斯科特气动镀铬冲水面板而且具有环保特点。
采用高仪三合一Rapid SL安装系统安装壁挂式坐便器,保持浴室陈设现代精简且易于保洁。这款坚固的水箱系统可以直接安装,具有灵敏特点,是理想的安装解决方案之选。钢架承重能力经证明超过400kg,确保使用稳定性,可以安装在实心墙前或撑柱墙内,而且配有高仪快可适系统,安装省时省力,无需使用工具即可连接好软管、检查井和供水管。高仪乐可节双冲系统更加环保,可降低耗水量。采用高仪静流技术和低噪音配件及独立水管,可以充分降低噪音在楼内的传播。本组合含挂墙式托板和精美的斯科特气动都市型镀铬冲水面板。
- GD2水箱
- 包括:
- 座厕用Rapid SL元件(38 840 000)
- 斯科特气动冲水面板,镀铬,立式安装(38 505 000)
- Rapid SL安装支撑件(38 558 00M)
技术信息
CAD数据

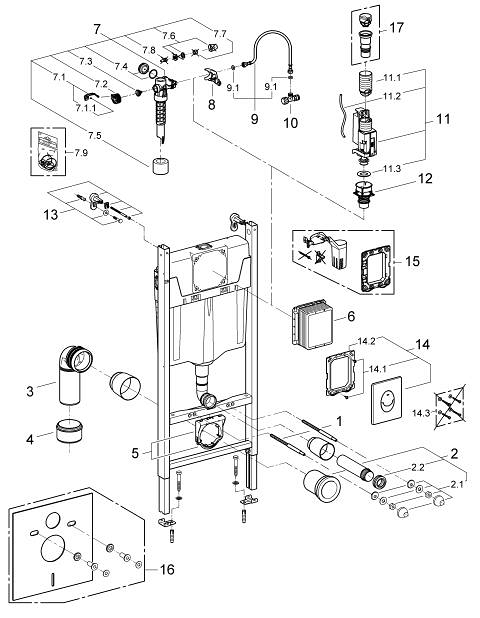

备件

邮编 | 生产描述 | 订货号 |
---|---|---|
*专用配件 | ||
1 | Threaded bolt | 4276400M |
2 | WC inlet and outlet connecting set | 37311K00 |
2.1 | Basin fastening | 43511SH0 |
2.2 | Connector | 37119000 |
3 | PP-outlet bend Ø 90 mm | 42327000 |
4 | Reducer | 42242000 |
5 | Support for outlet bend | 42243000 |
6 | 检查轴 | 66791000 |
7 | Filling valve | 37095000 |
7.1 | Lever | 43734000 |
7.1.1 | Seal | 4377000M |
7.2 | Valve head | 43536000 |
7.3 | Membrane | 4375800M |
7.4 | Screw cap | 43735000 |
7.5 | Valve FLOAT, 5 pcs. | 4379100M |
7.6 | Dummy plug and escutcheon cap | 37125000 |
7.7 | Compression nut | 43258000 |
7.8 | Throttle | 42356000 |
7.9 | Set of seals | 43722000* |
8 | Support device | 42246000 |
9 | Tube | 42233000 |
9.1 | Sealing washer | 0319100M |
10 | Angle valve | 43821000 |
11 | AV1 complete with pipe extension | 42320000 |
11.1 | extension for Overflow pipe | 42313000 |
11.2 | Pneumatic hose | 42319000 |
11.3 | Seal | 42310000 |
12 | Valve seat | 42316000 |
13 | Wall brackets | 3855800M |
14 | Wall plate | 38505000 |
14.1 | Screw | 6636200M |
14.2 | Mounting frame | 43207000 |
14.3 | Fixing set | 4308500M* |
14.4 | Fixing set | 4215800M* |
15 | Retro-fit set | 38796000* |
16 | Set for noise protection | 37131000* |
17 | 4.5 l adapter for GD2 | 42333000* |
